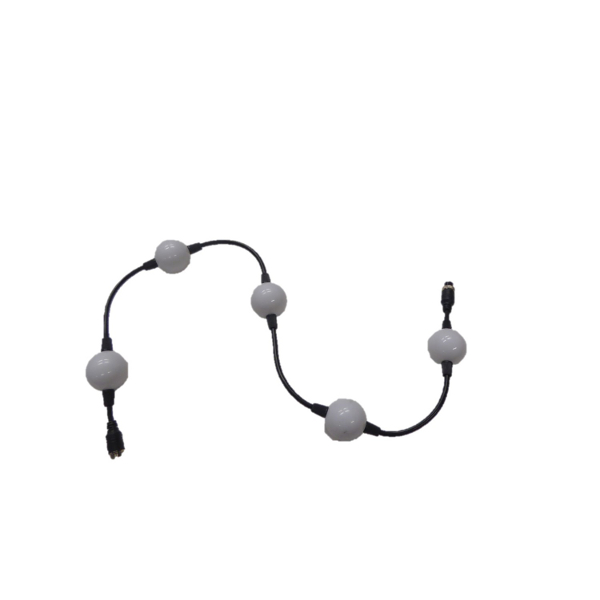

Pixel Ball (5 x Balls per length) 1m length

Download manual

Light Source & Optics

• 150 balls with RGB SMD LEDs inside
• LED source in 1 pixel: 2pcs SMD5050 RGB Full Colour
• Pixel pitch: 200 mm
• Spheres diameter: 50mm
• Projection angle: 360°
• LED life span: > 50.000h
• Internal protection: IP20
• Hanging system through eye bolt
• Input Voltage: AC100V - 240V 20/60Hz PowerCon
• Output Voltage: DC12V
• IN/OUT wiring signal connections through XLR3p and 4-pole cable
• Power consumption: 124W
• Dimensions (WxH): 200 x 300 cm
• Weight: 16Kg
