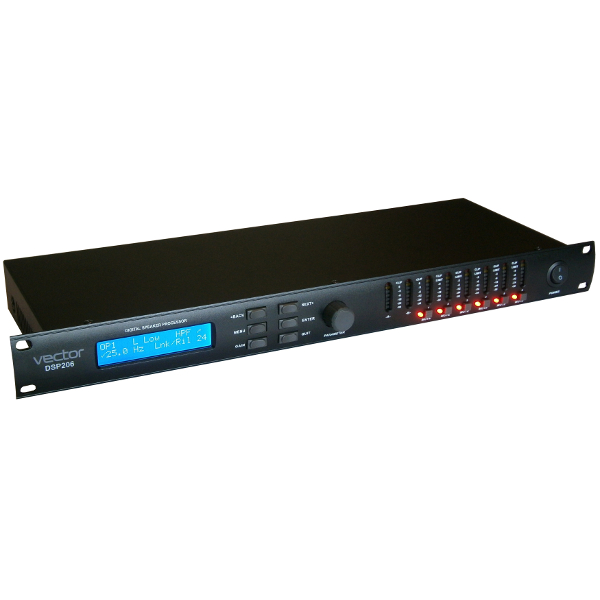

Vector DSP-206 2in 6out Processor
Product Code: VEC382
To purchase this item or for further information on any of our products, please contact us on
T: 01458 833186
E: orders@batmink.co.uk
Information
- Quality 2 in 6 out DSP unit

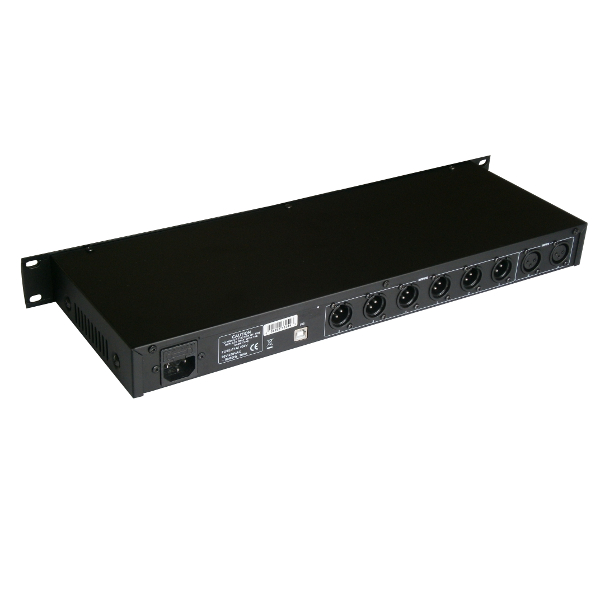

- Inputs: 2 x independent female XLR connectors
- Outputs: 6 x independent male XLR connectors

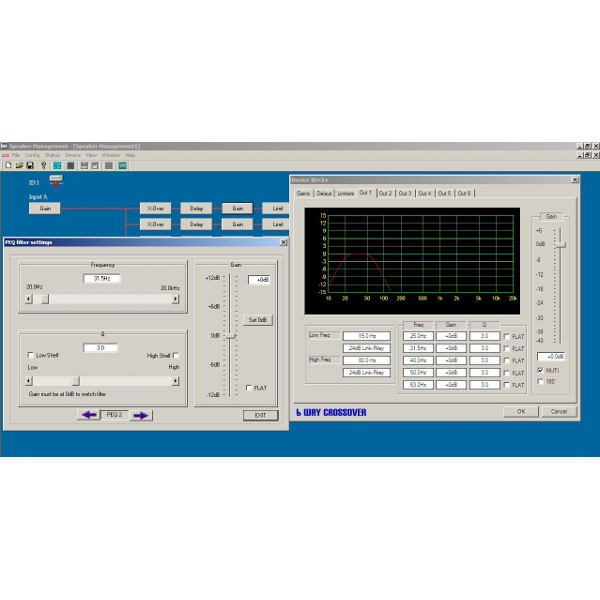

- Setup: Front panel or PC setup via USB and included software
- Lockable front panel
- Frequency response: 20Hz~20.0kHz
- Maximum delay: 7ms
- Output gain: -40dB~+6dB +/-0.5dB
- Input gain: 40dB~+6dB +/-0.5dB
- Parametric Equalizer
- Filter
- Gain: +/-12dB in 1dB steps
- Central freq. 20Hz~20.0kHz 31 ISO
- Q value: 0.5~10
- Crossover
- Low Pass: 20Hz~1kHz
- Hi Pass: 1kHz~20kHz
- Shelf gain: +/-12dB in 1dB steps
- HPF & LPF
- Filter
- Freq. (high pass): <10Hz~16.0kHz
- Freq. (low pass): 35Hz~22.0kHz
- Limiter
- Level: -20dB~+20dB
- Attack time: 1~100ms
- Holding time: 1~100ms
- Decay time: 10~1000ms
