Vector RM-501 Single Handheld Radio Microphone System

Vector RM-501 Single Handheld Radio Microphone System

The Vector RM series UHF radio microphones have been researched and developed here at Batmink distribution. This line brings you a solid, high-performance product at an impressive trade price point. Featuring single handheld or twin handheld models in the 863-865 Mhz / UK Channel 70 frequency. The receivers utilise a twin diversity antenna system for enhanced RF reception. The pristine vocal reproduction is perfectly suited for professional use in stages, conference rooms, ball rooms, clubs, pubs, bars, schools, houses of worship, and many other use cases. The sturdy metal transmitters are hardy enough for any challenging performance as well as a long life on the road. 19" rack kits are available as an option, also incorporating front mount antenna plates with BNC cables for a better antenna position.

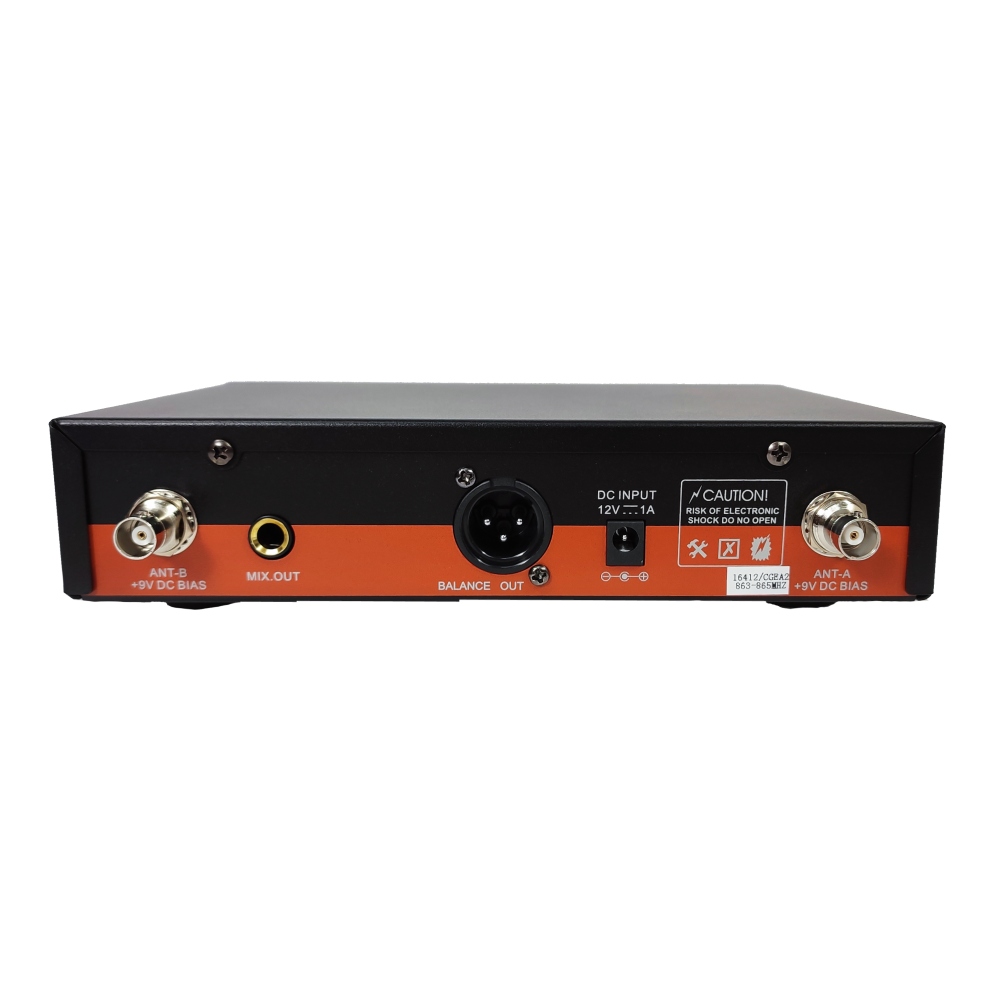

Receiver

• Output Connectors: Female XLR / 6.35mm jack (Jack Cable Included)
• Operating Frequency: 863-865Mhz (UK Ch-70)
• Dynamic Range: 96dB
• Antenna Type: Twin diversity antenna
• Frequency Response: 30-20KHz/+2db
• Operating Range: 60m
• Sensitivity: -95dBm
• Distortion: <0.1%
• Signal/Noise ratio:96dB
• Rack Space: 1U
• Rack Kit: Optional see order code VEC415RK
• Receiver Dimensions: 210 x 44 x 153mm / LxHxD
• Receiver Weight: 0.9Kg
• Shipping Box Dimensions: 380 x 70 x 290mm / LxHxD
• Gross Shipping Weight: 1.8Kg

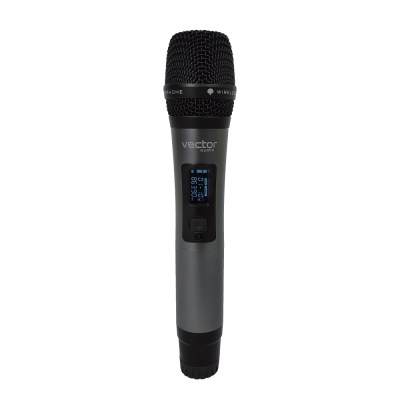

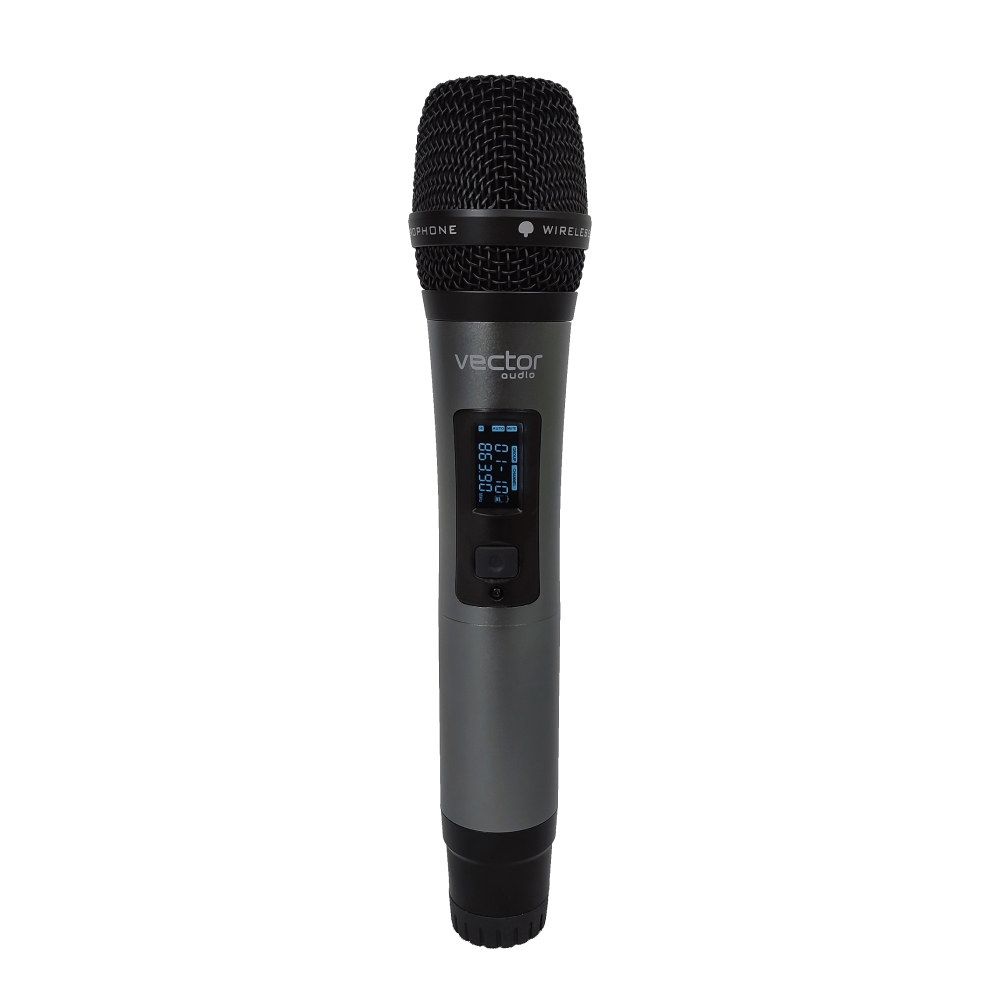

Handheld Transmitter

• Operating Frequency: 863-865Mhz (UK Ch-70)
• Frequency Switch: IR SYNC
• Output Power: HI:10mW,LOW:5mW
• Harmonic Radiation:
• Battery: 2x 1.5V AA (Included)
• Battery Life: 5 Hours

User Maual VEC414/415
